ctop – Top-like Interface for Monitoring Docker Containers

ctop is a free open source, simple and cross-platform top-like command-line tool for monitoring container metrics in real-time. It allows you to get an overview of metrics concerning CPU, memory, network, I/O for multiple containers and also supports inspection of a specific container.

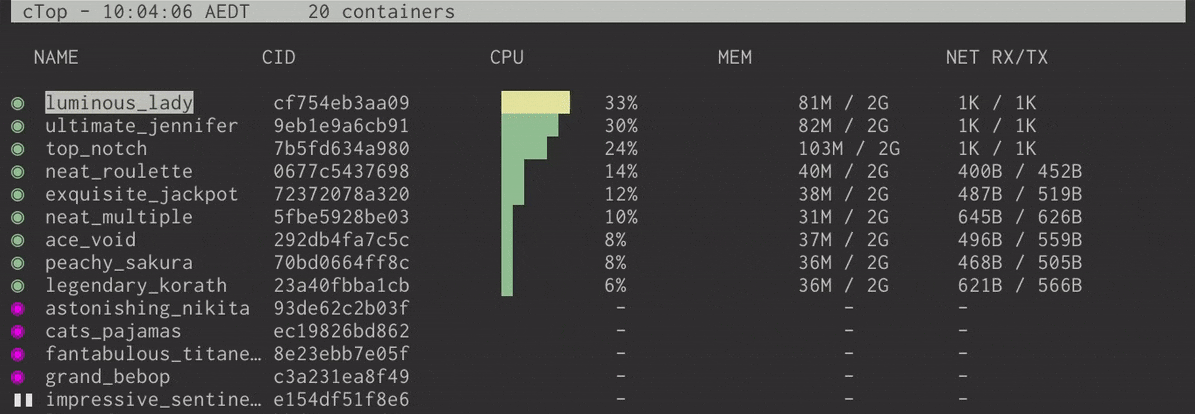

Docker Container Monitoring
Docker Container Monitoring

At the time of writing this article, it ships with built-in support for Docker (default container connector) and runC; connectors for other container and cluster platforms will be added in future releases.

How to Install ctop in Linux Systems

Installing the latest release of ctop is as easy as running the following commands to download the binary for your Linux distribution and install it under /usr/local/bin/ctop and make it executable to run it.

$ sudo wget https://github.com/bcicen/ctop/releases/download/v0.7.1/ctop-0.7.1-linux-amd64  -O /usr/local/bin/ctop
$ sudo chmod +x /usr/local/bin/ctop

Alternatively, install ctop via Docker using following command.

$ docker run --rm -ti --name=ctop -v /var/run/docker.sock:/var/run/docker.sock quay.io/vektorlab/ctop:latest

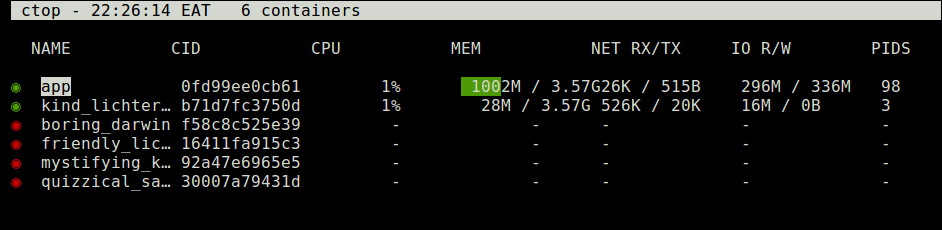

Once you have installed ctop, you can run it to list all your containers whether active or not.

$ ctop
Monitor Docker Containers
Monitor Docker Containers

You can use the Up and Down arrow keys to highlight a container and click Enter to select it. You will see a menu as shown in the following screenshot. Choose “single view” and click on it to inspect the selected container.

Monitor Single Docker Container
Monitor Single Docker Container

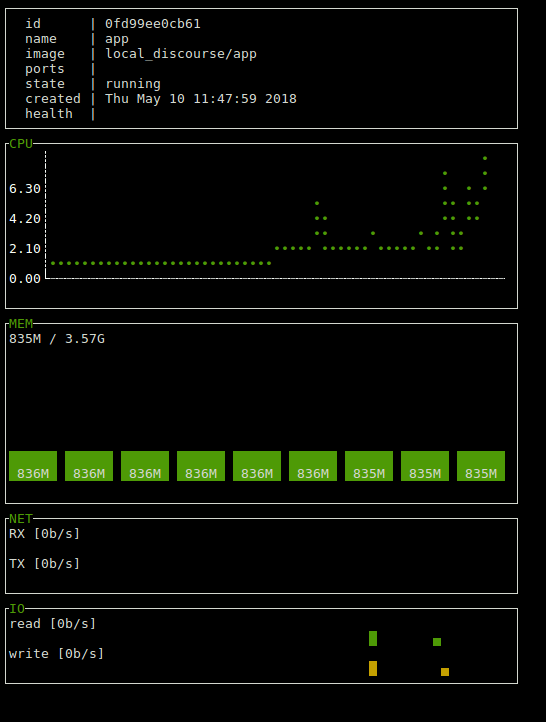

The following screenshot shows the single view mode for a specific container.

Inspect a Single Container
Inspect a Single Container

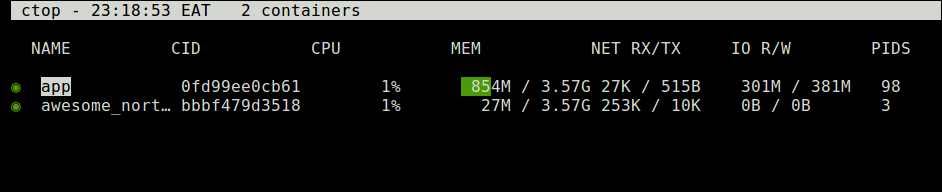

To display active containers only, use the -a flag.

$ ctop -a
Check Active Docker Container
Check Active Docker Container

To display CPU as % of system total, use the -scale-cpu option.

$ ctop -scale-cpu

You can also filter containers using the -f flag, for example.

$ ctop -f app

Additionally, you can select initial container sort field using the -s flag, and see the ctop help message as shown.


$ ctop -h

Note that connectors for other container and cluster systems are yet to be added to ctop. You can find more information from the Ctop Github repository.

ctop is a simple top-like tool for visualizing and monitoring container metrics in real-time. In this article, we’ve expalined how to install and use ctop in Linux. You can share your thoughts or ask any questions via the comment form below.
